Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YONGNUO
  • Model Number: YN-568EX For Nikon
  • High-speed Sync: The max. sync speed is 1/8000s
  • Flash time: 1/200s~1/20000s
  • Channels:: 4
  • Color temperature:: 5600k
  • Power supply:: 4*AAsize batteries
  • Wireless triggering distance:: 20~25m indoor, 10~15m outdoor

Packaging & Delivery

Packaging Details 20pcs per one carton
Delivery Time 2-7days

Specifications

The max. sync speed is 1/8000s And fully support TTL Functions

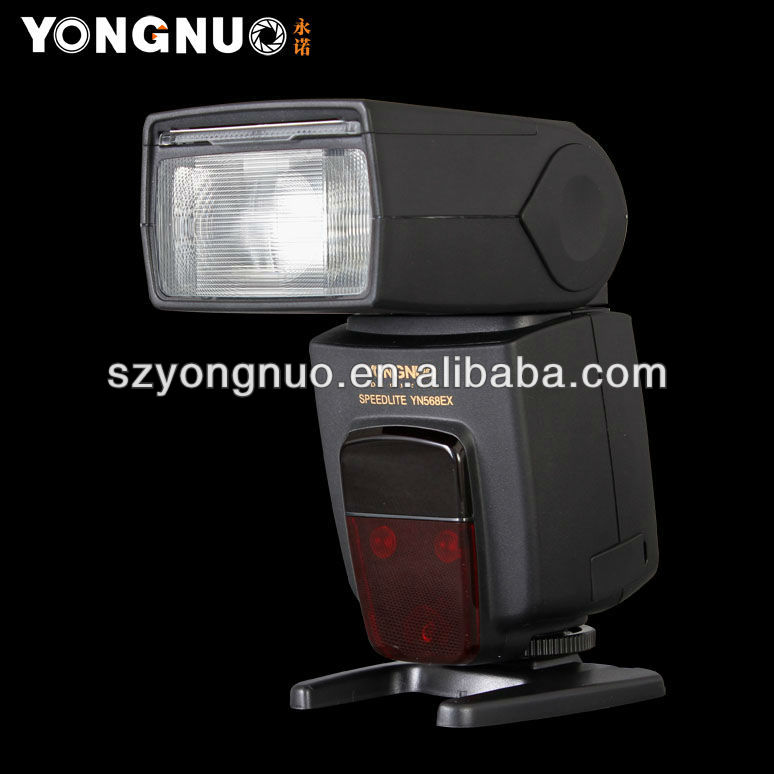

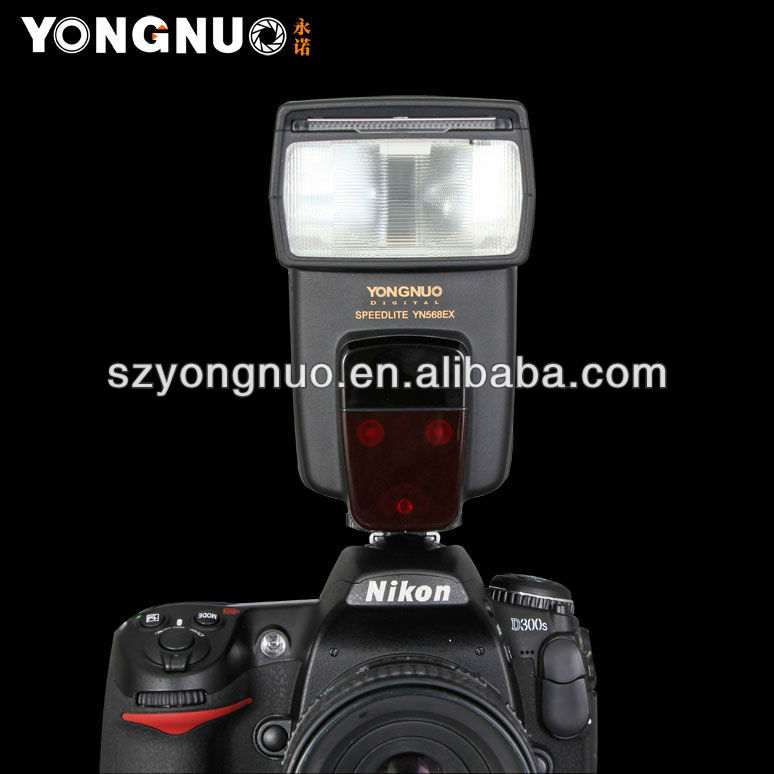

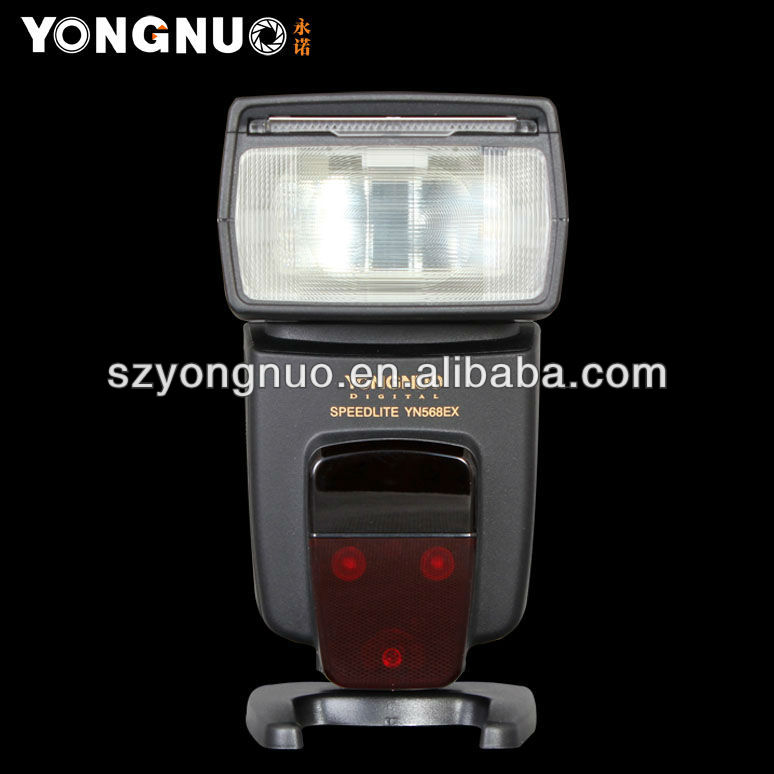

YONGNUO YN-568EX YN568EX Speedlite for Nikon D800 D700 D600 D300

FP/HSS FUNCTION IS NOW SUPPORTED BY YONGNUO’S YN568EX SPEEDLITE

√SUPPORTS HIGH-SPPEED SYNC FLASH

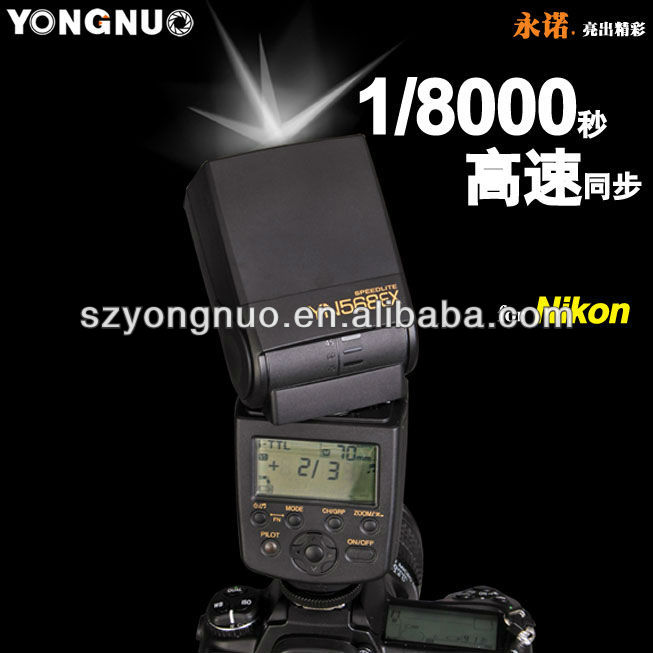

YN568EX is the first speedlite supports high-speed flash in china; with high-speed sync (FP flash), the YN568EX can synchronize with all shutter speeds, the maximum shutter sync up to 1/8000.
√COMPATIBLE WITH N’s and C’s WIRELESS FLASHING SYSTEM
One YN568EX is able to respectively accept internal flashing of 580EX II, SB-900/800/700, 7D/60D/600D, C order of N’s internal flashing and ST-E2 wireless signal, achieves external TTL and manual flashing. Some beckoning functions such as wireless TTL flashing, grouping light ratio TTL flashing and the illumination of remote controlled flashing can be easily attained only if you carry a camera with built-in flashing command system and YN568EX.
√A NEW TTL FLASH WITH LARGE GUIDE NUMBER
GN58@ ISO100, 105mm; which reaches the level of the mainstream hot shoe flashes, supports HSS, TTL/M/Multi mode.
√MULTIPLE TRIGGER MODE SUPPORTED
The YN568EX can be triggered by the camera set-top, built-in or main-controlled flashing command, S1 and S2 (pre-flash-canceled mode).
√SUPPORTS AUTO/MANUAL ZOOMING
Full-frame/Half-frame switchable with 24~105mm zooming range.
√COMPREHENSIVELY SUPPORTS TTL FUNCTIONS
The YN568EX supports HSS, FEC, FEB, Rear-curtain sync, FE lock, Modeling Light.
√SUPER SPEED OF CHARGING RECYCLE
The time for full gloss output current-return will only take you 3 seconds; you can get fast current-return experience even without brand-new batteries, which will only take you 4~5 seconds.
√COMPLETED WITH 2.5mm PC SYNCHRONOUS INTERFACE
It makes things easier on lightening the flashlight synchronously by using PC synchronous line.
√SOUND PROMPTING SYSTEM
When the sound prompting system is enabled, the different sound ways will prompt the different working conditions of the flashlight so as to make you focus on shooting only.
√DEPTH-OF-FIRED
Press down the camera’s depth-of-fired preview button, the YN568EX will send out continuous flash lasting one second.
√ADVANCED SETTINGS ON FLASH
The YN568EX has advanced options setting function, where you can self-define the functions of the flashlight on your own requirements.
√AUTOMATIC SETTINGS SAVING
YN568EX automatically save the operation currently used for your future use.

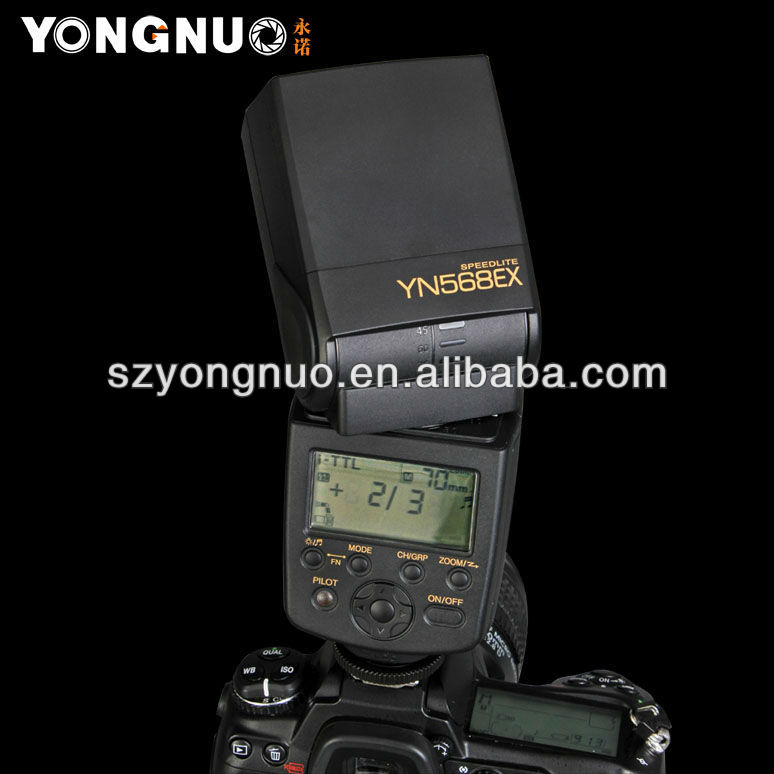

√LCD PANEL USER INTERFACE WITH SUPER GELIVABLE METAL HOT-SHOE STAND

Parameters:



High-speed Sync

The max. sync speed is 1/8000s

Guide No.

58 meters (ISO 100, 105mm)

Flash mode

High-speed Sync HSS ,TTL , M , MULTI

Wireless trigger

N?s & C?s wireless system, S1, S2 pre-flash-canceled mode

Wireless triggering distance

20~25m indoor, 10~15m outdoor

Slave groups

3(A, B, and C)

Channels

4

Zoom range

24,28,35,50,70,80,105mm

Vertical rotation angle

-7~90 degrees

Horizontal rotation angle

0~270 degrees

Power supply

4×AAsize batteries (Alkaline or Ni-MH are usable)

Lighting times

100~1500 times (AA alkaline cell used)

Recycle time

approx 3s (AA alkaline cell used)

Color temperature

5600k

Flash time

1/200s~1/20000s

Flash control

8 levels of output control (1/128~1/1), 22 levels of fine tuning

External interface

hot shoe, PC port and eternal charging port

External power

YONGNUO External Flash Pack like SF-18C, SF-17C

Wireless triggering distance

20~30m indoor,10~15m outdoor

Additional features

Rear-curtain sync, FEC, FEB, FEV, modeling flash, manual zoom, auto zoom, sound prompt, advanced setting, automatically saving setting, PC port, power saving mode and over heat protection

Dimensions

60×190×78mm (Extended state)

Net weight

380g

Suit for :

Nikon D4, D3x, D3s, D3, D2x, D800E, D800, D700, D600, D300s, D300, D200, D7000, D90, D80, D5200, D5100, D5000, D3100, D3000, D60, D40, D40x
